Ingersoll GANTRY 1000 / 32 bit

The used Die sinking EDM machine GANTRY 1000 / 32 bit of Ingersoll (OPS Ingersoll) has been professionally partly overhauled by MS Schöllchen and is in good condition. Price on request. Buy used now!
Ingersoll (OPS Ingersoll)
Die sinking EDM machine
GANTRY 1000 / 32 bit
Year Of Construction
Mitsubishi - 32 Bit CNC
Generator Power
100 Ampere - multipulse
Axis travel (X, Y, Z)
700 x 1350 x 500 mm

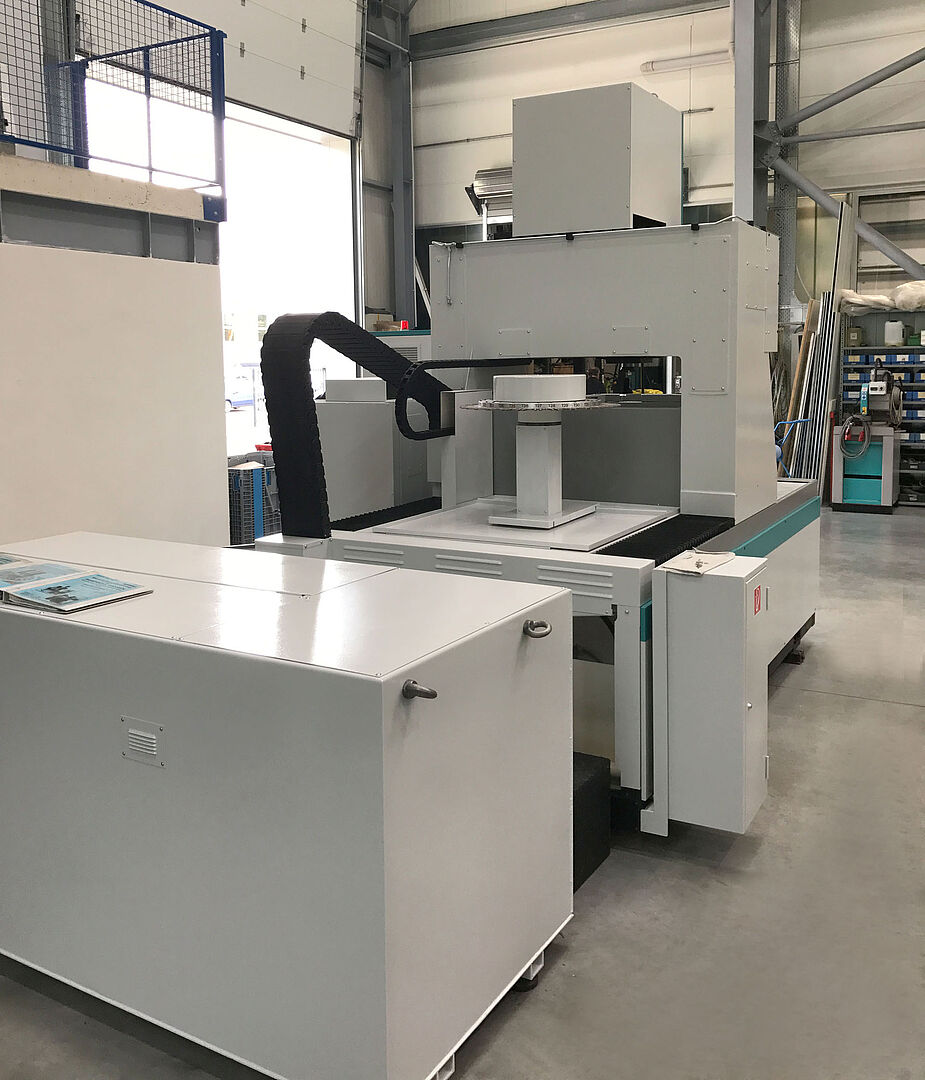

10-times pick-up linear changer
Worktank (W x D x H)
1000 x 1600 x 550 mm
Worktable (W x D)
900 x 1500 mm
Load capacity
3.000 kg
CO2-Fire extinguisher system
Filterset cartridge
partly overhauled
on request
request inquiry now

Further information about the used Die sinking EDM machine GANTRY 1000 / 32 bit

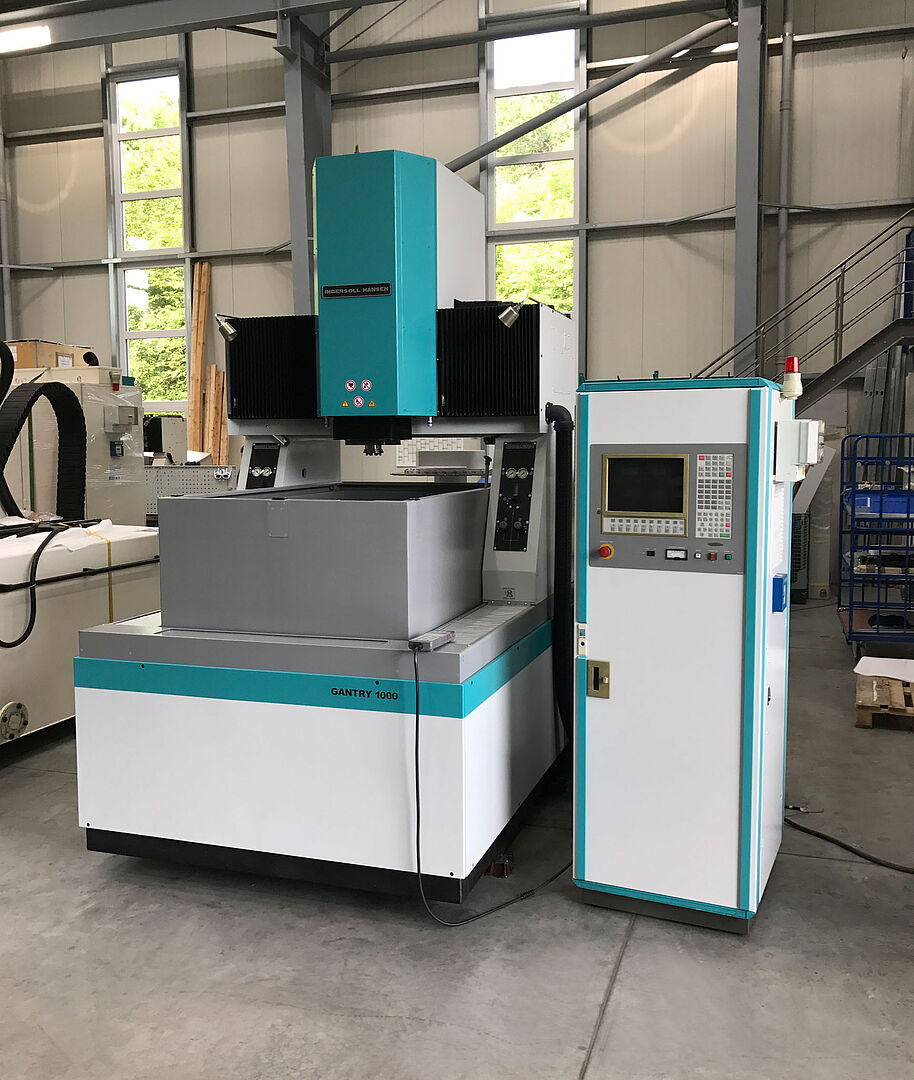

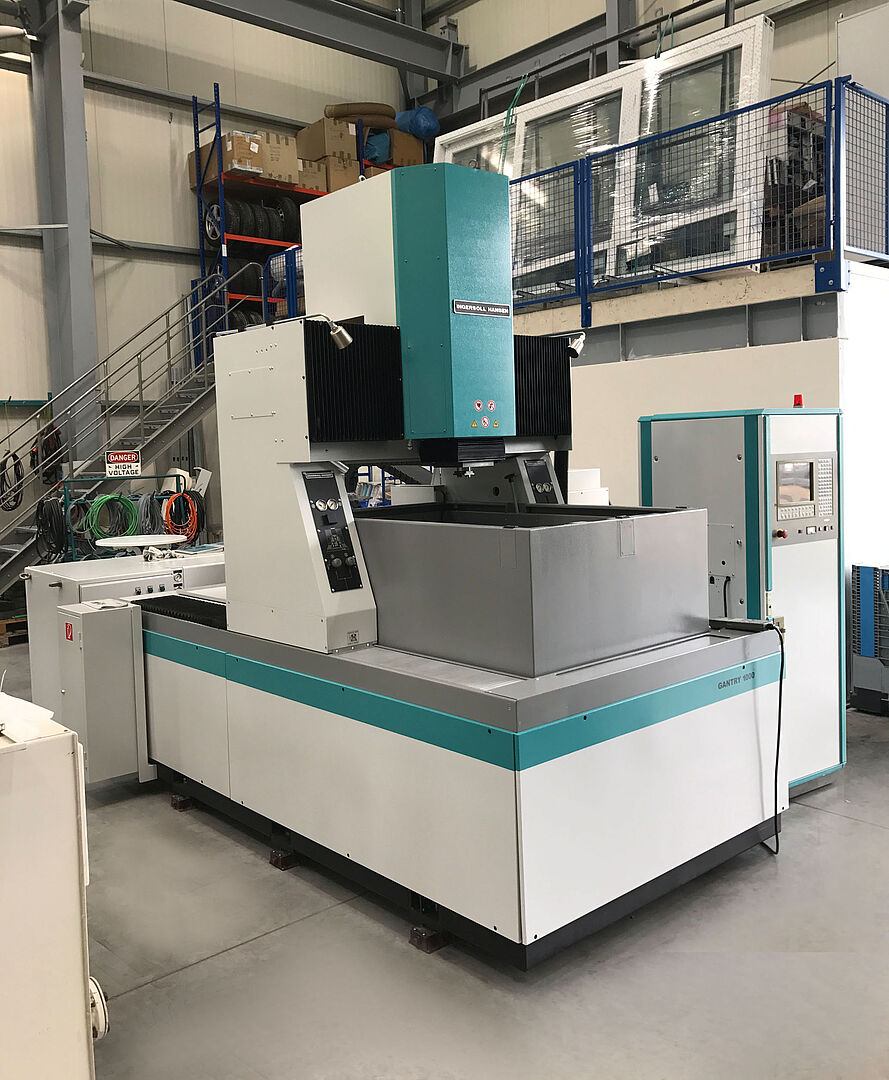

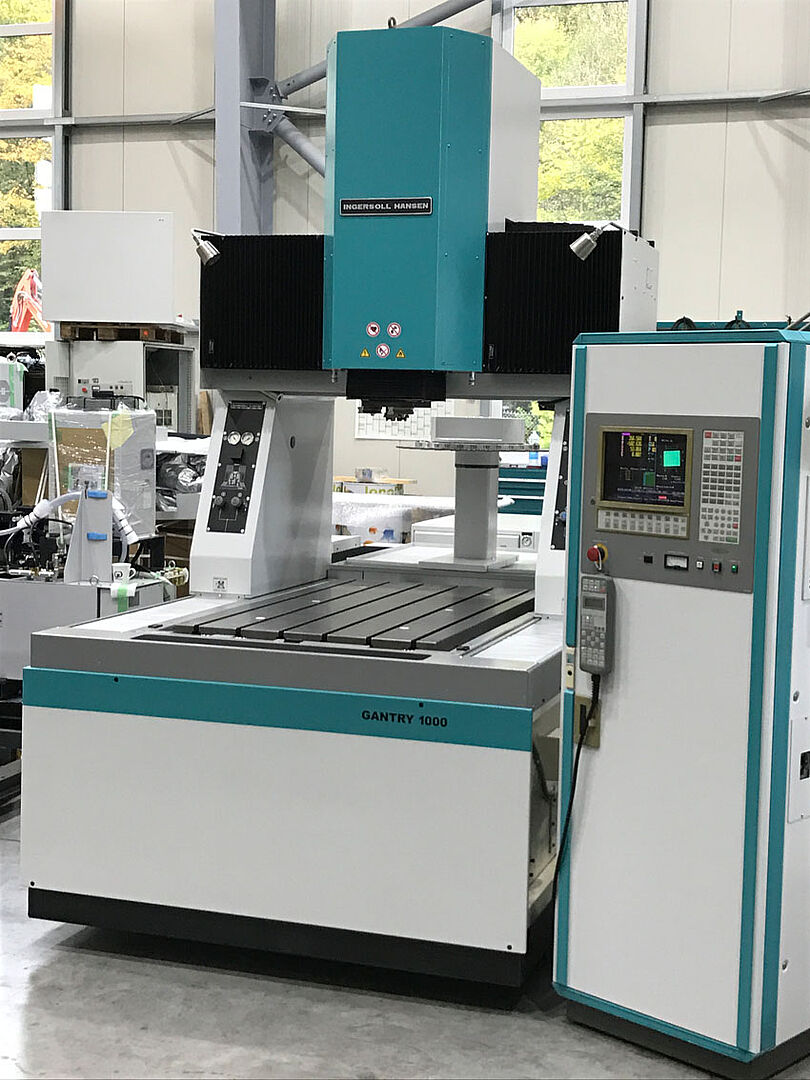

The Gantry 1000 die-sinking EDM machine from OPS Ingersoll is a compact EDM gantry solution for medium to large tool and mould making. Thanks to the proven gantry principle, this spark erosion machine in gantry design is as accessible as possible. The workpiece to be eroded can be easily placed on the clamping table by crane. The possibility of clamping several workpieces for EDM increases the flexibility of the Gantry 1000.

The standard version of the Gantry 1000 is equipped with a linear electrode changer, with which even larger electrodes can be changed automatically. Alternatively, a plate electrode changer is available for this gantry EDM machine. Two different filter systems for cleaning the dielectric are basically available for the Gantry 1000. A pressure-monitored, semi-automatic filter system, which allows the filter to be changed during EDM, and a fully automatic backflush filter system, with which only the pre-dried EDM sludge needs to be disposed of.

The proven Ingersoll AC servo drive, together with a 32-bit CNC control, forms the basis for high EDM performance and high-precision spark erosion. The linear guide of the die-sinking EDM machine is based on a roller recirculating unit which, together with the central lubrication, ensures maintenance-free EDM and a long service life for the EDM machine.

The purchase of a used, overhauled EDM machine is therefore always a cost-effective alternative, without any loss of quality in EDM. We have decades of experience in the field of EDM and are the right contact if you want to buy a used die-sinking EDM machine.
