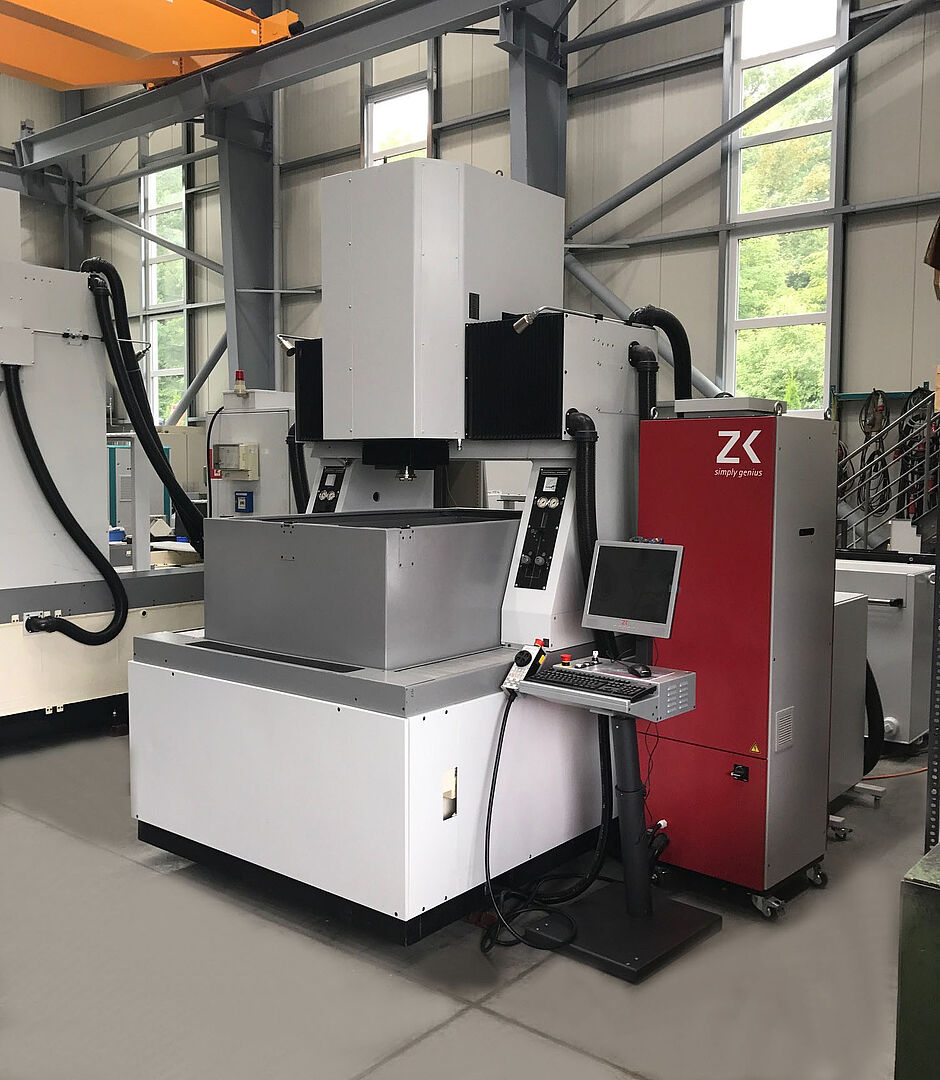

Ingersoll GANTRY 1000 / GENIUS / Retrofitting

The used Die sinking EDM machine GANTRY 1000 / GENIUS / Retrofitting of Ingersoll (OPS Ingersoll) is currently not available. We will gladly obtain this machine for you in the near future. Get in contact
This machine is currently unavailable.
Manufacturer
Ingersoll (OPS Ingersoll)
Die sinking EDM machine
GANTRY 1000 / GENIUS / Retrofitting
Year Of Construction
2021
Control
ZK GENIUS-control -
CNC Dialogcontrol,
height-adjustable TFT
screen,
control panel,
Jogwheel Handygenius,
Keyboard and mouse,
Windows 7
Generator Power
52 Ampere
Axis travel (X, Y, Z)
700 x 1350 x 500 mm
Electrodechanger
9-times pick-up linearchanger
Worktank (W x D x H)
1000 x 1600 x 550 mm
Worktable (W x D)
900 x 1500 mm
Load capacity
3.000 kg
Status
overhauled
Price
Auf Anfrage
Optionen
Generatorzusatzpaket
48 Ampere,
24-fach Tellerwechsler
Get in contact

Further information about the used Die sinking EDM machine GANTRY 1000 / GENIUS / Retrofitting

The machine is the Retrofitting of an INGERSOLL IG 1000 E with a  ZK (Zimmer + Kreim) GENIUS Control.
The complete Electronic (Control, Generator, Drive motors, etc.) have  been updated with ZK and was rebuilt together with ZK to the latest Technology of ZK.
The machine mechanics were completeley overhauled or exchanged.
