Ingersoll Gantry 500 / 32 Bit

The used Die sinking EDM machine Gantry 500 / 32 Bit of Ingersoll (OPS Ingersoll) is currently not available. We will gladly obtain this machine for you in the near future. Get in contact
This machine is currently unavailable.
Manufacturer
Ingersoll (OPS Ingersoll)
Die sinking EDM machine
Gantry 500 / 32 Bit
Year Of Construction
1998
Control
Mitsubishi - 32 Bit CNC
Generator Power
70 Ampere, multipulse
Axis travel (X, Y, Z)
525 x 400 x 375 mm
Electrodechanger
20-times pick-up carouselchanger
Worktank (W x D x H)
750 x 650 x 420 mm [Hubbehälter]
Worktable (W x D)
730 x 630 mm
Load capacity
1.000 kg
Accessories
CO2-Fire extinguisher system
integr. Filterset cartridge
Status
partly overhauled
Price
on request
Get in contact

Further information about the used Die sinking EDM machine Gantry 500 / 32 Bit

The Gantry 500 die-sinking EDM machine from OPS Ingersoll is the EDM all-rounder of EDM and the best-selling EDM machine. The four-axis machining centre features the proven multipulse generator technology and a sophisticated CNC EDM control. Thanks to maximum traverse paths, small and medium-sized workpieces can be eroded with high precision despite the compactness of the machine. All EDM machines in the Gantry series feature HSJ (High Speed Jumping) technology, which can reduce EDM machining time by up to 50%.

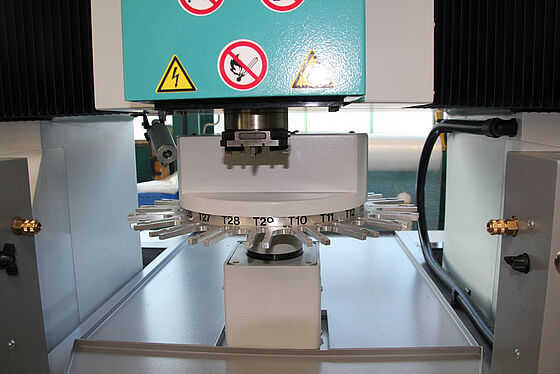

The Gantry 500 comes with an electrode changer that can hold up to 20 electrodes. Special recirculating ball screws, an optimised lubrication and cooling system and a linear measuring system in the Z-axis of the die-sinking EDM machine ensure maximum precision and durability.

The purchase of a used, reconditioned EDM machine is thus always a cost-effective alternative, without any loss of EDM quality. We have decades of experience in the field of EDM and are the right contact if you want to buy a used die-sinking EDM machine.
