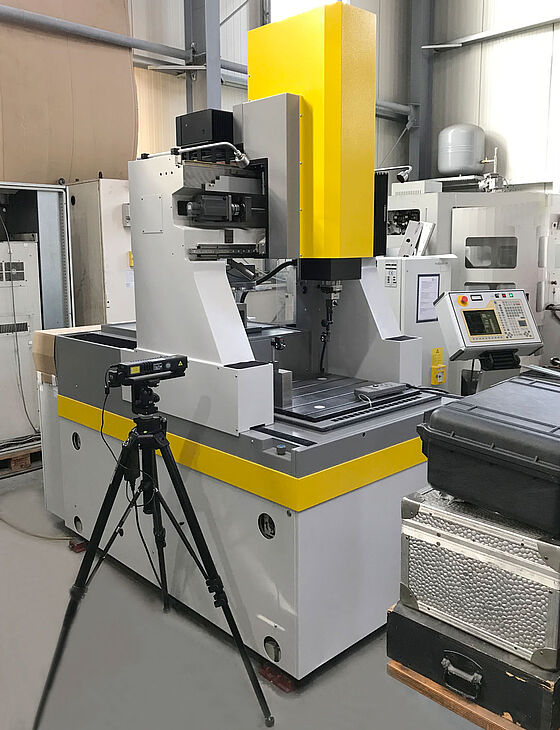

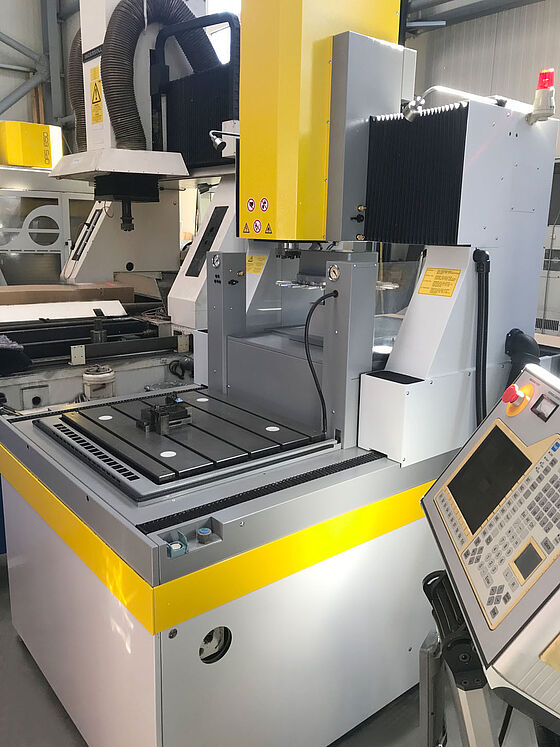

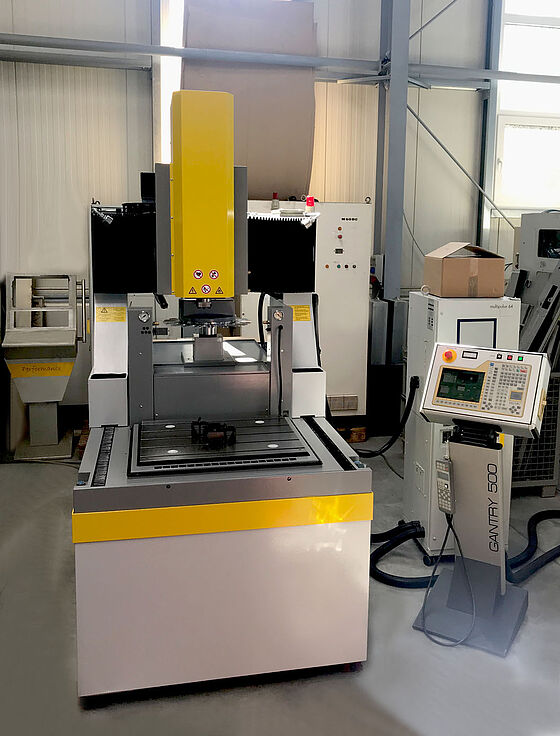

Ingersoll GANTRY 500 HSJ / 64 bit

The used Die sinking EDM machine GANTRY 500 HSJ / 64 bit of Ingersoll (OPS Ingersoll) is currently not available. We will gladly obtain this machine for you in the near future. Get in contact
This machine is currently unavailable.
Ingersoll (OPS Ingersoll)
Die sinking EDM machine
GANTRY 500 HSJ / 64 bit
Year Of Construction
Mitsubishi - 64 bit CNC
Generator Power
70 Ampere, multipulse
Axis travel (X, Y, Z)
525 x 400 x 450 mm
20-times carousel changer
Worktank (W x D x H)
750 x 650 x 420 mm
Worktable (W x D)
730 x 630 mm
Load capacity
1000 kg
CO2-Fire Extinguisher system
Integr. Filterset cartridge
Programming software MultiProg
MultipulsePRO (Hard- and Software)
on request
HSJ-Technology (High Speed Jump)
max. 12.000 mm/min
Get in contact

Further information about the used Die sinking EDM machine GANTRY 500 HSJ / 64 bit

For small to medium size moulds and dies

Maximum axis travel with very compact external dimensions, highest precision and around accessibility are the highlights of the GANTRY 500. With the new HSJ-technology (High-Speed-Jump) can your reached highest results.The high-performance servo-system accelerates the Z-axis with 1,2 G to an interval-speed of more than 10min/min. The especially for this technology developed ball screw, an optimised lubrication an cooling system as well as an improved measuring system in the Z-axis, ensure the high precision, and premium EDM results for all applications.
