Ingersoll Gantry 400 - Eagle

The used Die sinking EDM machine Gantry 400 - Eagle of Ingersoll (OPS Ingersoll) is currently not available. We will gladly obtain this machine for you in the near future. Get in contact
This machine is currently unavailable.
Ingersoll (OPS Ingersoll)
Die sinking EDM machine
Gantry 400 - Eagle
Year Of Construction

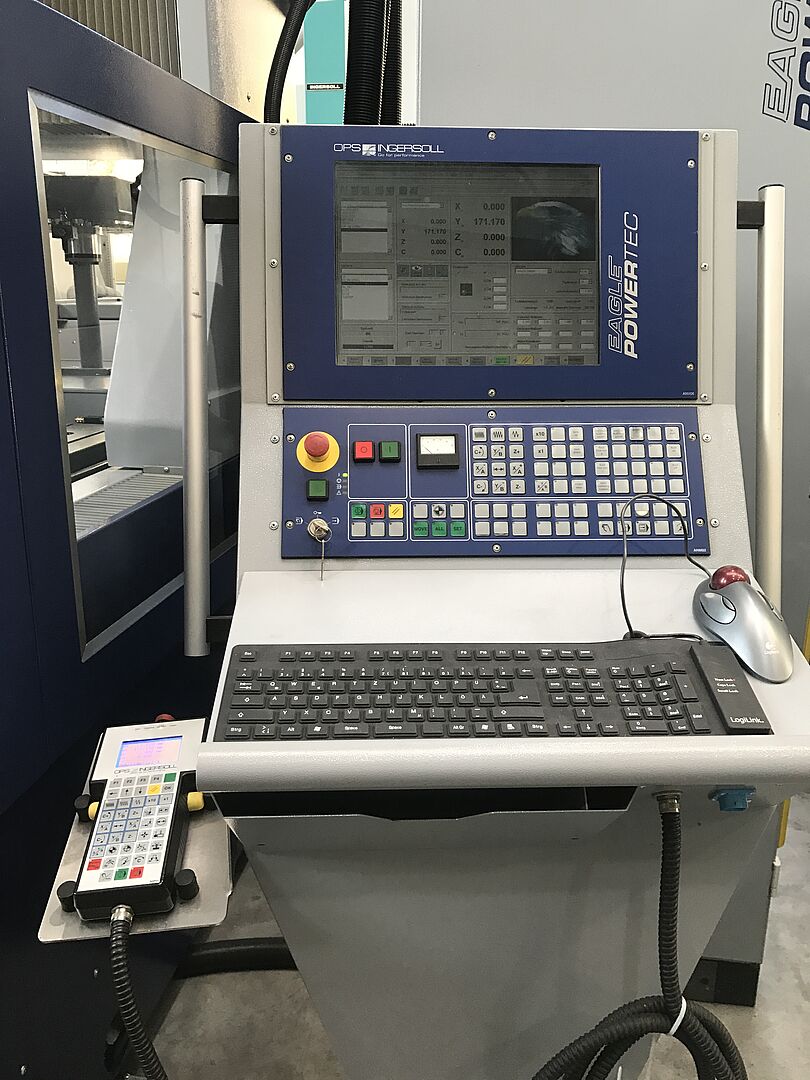

EAGLE PC-NC Control 3060 - MultiProg Powertec Technology programming at PC/NC - Powertec 2 - Easy Burn Fast programming - Powertec Handheld - multifunctional Manual-controlunit - Manual Eroding with Powertec Handheld - Interface Ethernet and USB - MultiControl light (remote maintenance with internet)
Generator Power
EAGLE Powertec - Feinschlichtgenerator PT 60, 60 Ampere
Axis travel (X, Y, Z)
X: 402 mm (EAGLE Power Jump - mit 5 m/min) - Y: 282 mm (EAGLE Power Jump - mit 5 m/min) - Z: 366 mm (EAGLE Power Jump - mit 18 m/min)

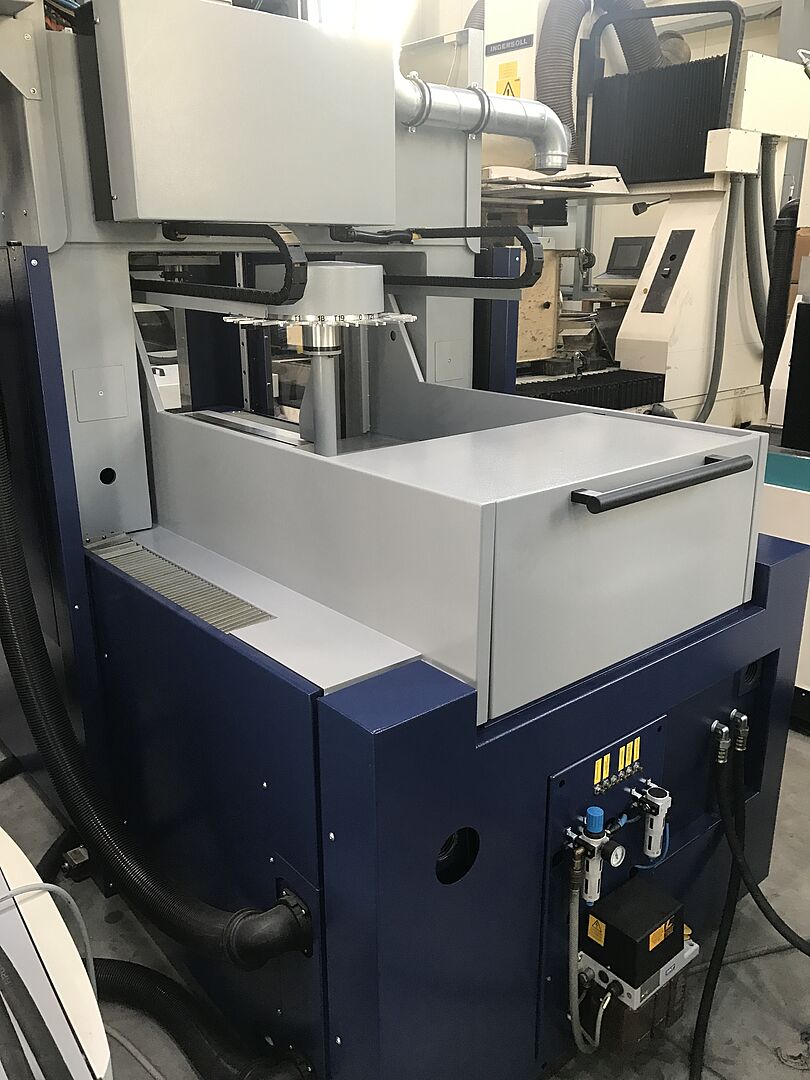

20-times pick-up carouselchanger
Worktank (W x D x H)
650 x 500 x 340 mm (Hubbehälter)
Worktable (W x D)
550 x 470 mm
Load capacity
500 kg
CO2-Fire extinguisher system - integr. Filterset cartridge - 16 m² - Compressor heat exchanger - Machine-shoes

fire damper - MultiProg Powertec Technology programming for external programming place
on request
Get in contact

Further information about the used Die sinking EDM machine Gantry 400 - Eagle

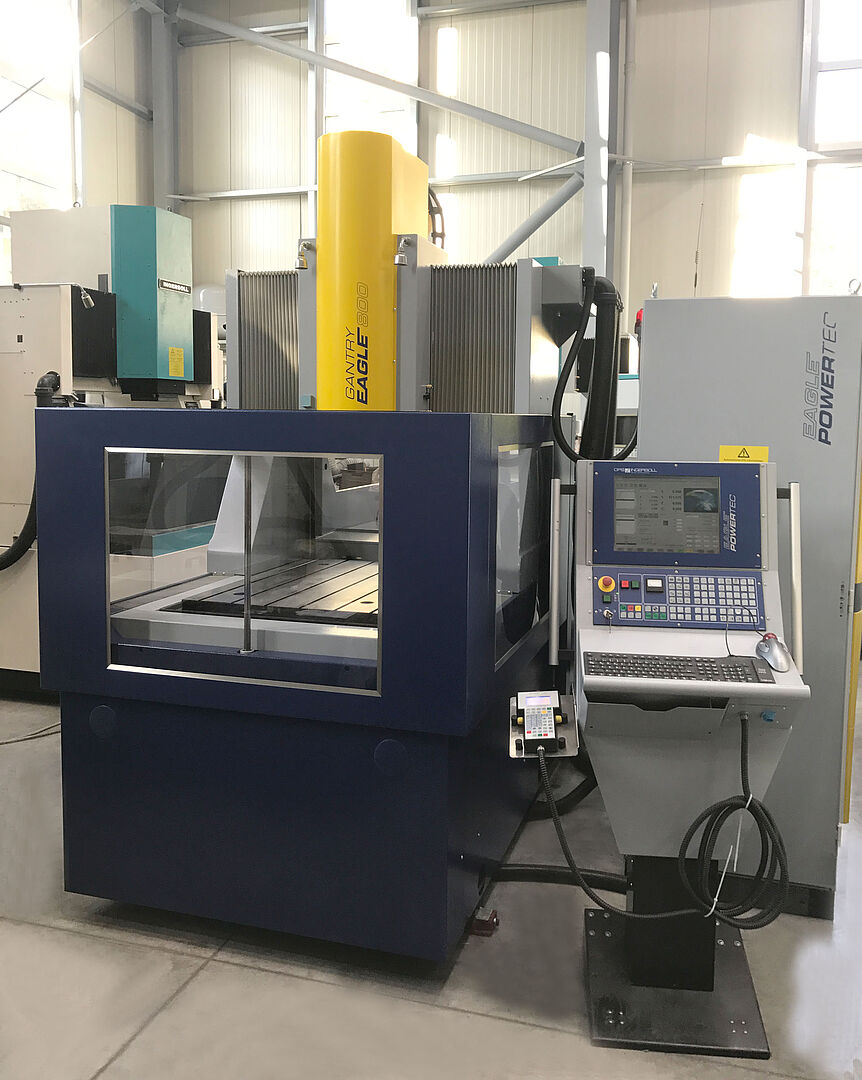

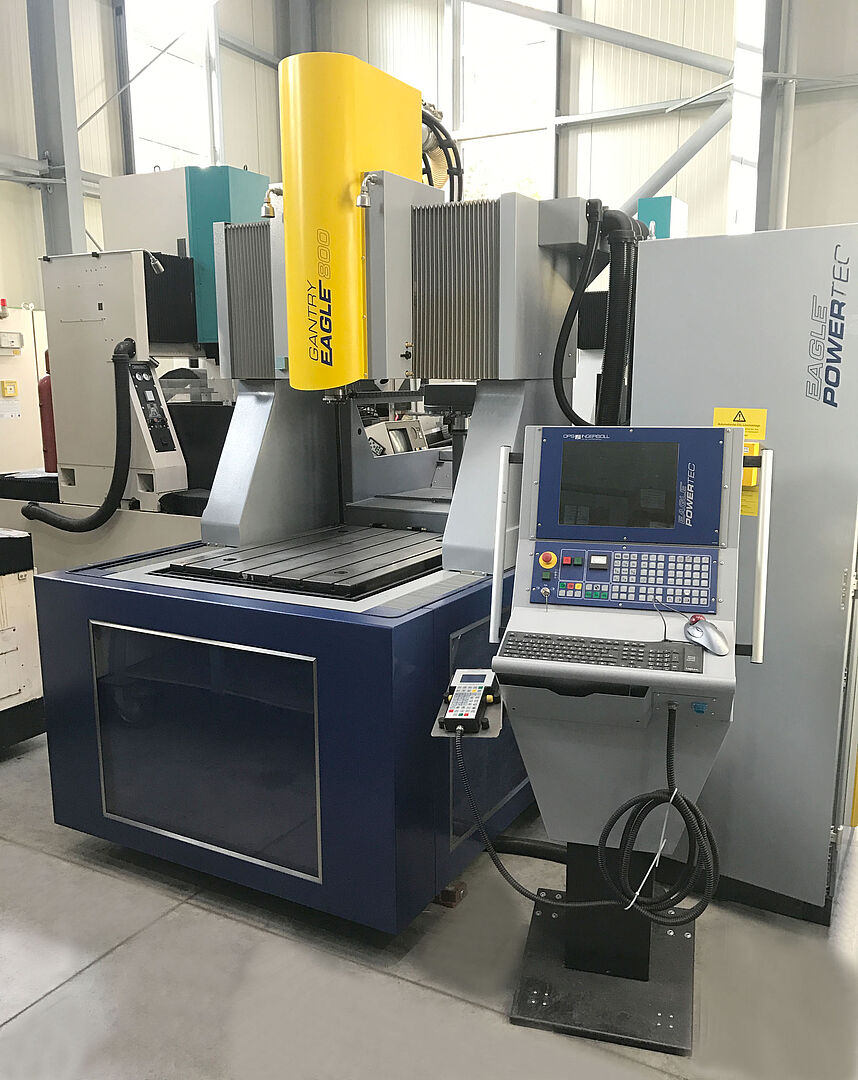

The Gantry 400 die-sinking EDM machine from OPS Ingersoll is the smallest EDM machine in the Gantry series. The four-axis machining centre features the proven multipulse generator technology and a sophisticated CNC EDM control. Thanks to maximum traverse paths (X/Y/Z 400x300x300 mm) and an adequately dimensioned work bowl (W/D/H 650x500x340 mm), smaller workpieces can be eroded with high precision despite the compactness of the machine. All EDM machines in the Gantry series feature HSJ (High Speed Jumping) technology, which can reduce EDM machining time by up to 50%.

The Gantry 400 comes with an electrode changer that can hold up to 20 electrodes. Special recirculating ball screws, an optimised lubrication and cooling system and a linear measuring system in the Z-axis of the die-sinking EDM machine ensure maximum precision and durability.

The purchase of a used, reconditioned EDM machine is thus always a cost-effective alternative, without any loss of EDM quality. We have decades of experience in the field of EDM and are the right contact if you want to buy a used die-sinking EDM machine.
